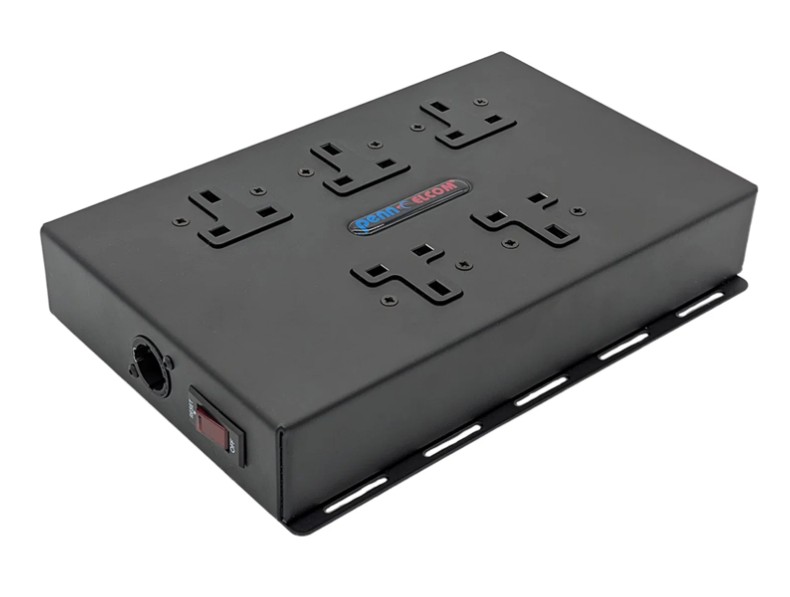

13A Power Distribution Unit, True 1 In/Out - 16A AC TRU1

Price: £195.00 (£234.00 Including VAT at 20%)

Stock Code: SKU PEN171

Quantity:

Description
Delivery & Returns

Product Description

This power distribution board is built for professional event use, with a super tough steel case and high-spec components.

Designed for mounting, it comes with a rear M10 captive nut fixing for coupler attachment to truss and stage fixings. Also has side slots for velcro or cable ties to help secure the unit.

Unit provides 5 x 13A UK sockets, a Neutrik 16A 240V TRU1 input connector, and 2 x LINK OUTPUT Neutrik TRU1 output connector, and a 16A illuminated thermal breaker for circuit protection.

2 + PDU16-5UK-T1 can be linked via the through link outputs to give 12 or more remote outputs with a TOTAL maximum working load of 16A.

Safety notice: when using the LINK output the combined load of a "Daisy Chain" must not exceed 16A.

Technical Specification:

- Voltage: 240V max

- Frequency: 50/60HZ

- Max Combined Load: Current 16A

- Dimensions: 44mm x 166mm x 243mm

Delivery & Returns

All orders shipped via Parcelforce or their agents. Please see our terms and conditions for our returns policy.
