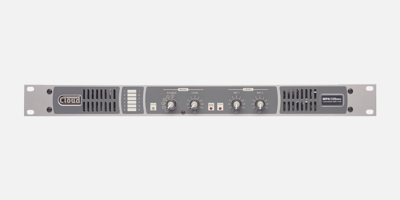

The Cloud 24-120 is a brand-new approach to 2 Zone Mixer Amplification. Utilising the highest quality amplifier and power supply digital technology. It combines simple control of background music source, music level and microphone paging for up to two zones in a single unit. It has extensive remote control facilities and is ideal for installation in premises such as pubs, bars, hotels, leisure and fitness centres, retail and other small commercial premises.
The 24-120 in includes two transformer-less Class-D 120W amplifiers with limiters on each zone plus Thermal/Short Protection, as well as 4 Line inputs (2x unbalanced/ 2x balanced). High-Impedance Power sharing means the 24-120 automatically allocates unused channel power with no configuration required (240W available).
Two zone mixer/amplifier
2 x transformer-less Class-D 120W amplifiers with limiters on each zone plus Thermal/Short Protection
4 Line inputs, 2x unbalanced/ 2x balanced
1 Mic input with analogue paging options
Integrated chime triggered by access control
100Hz dedicated high-pass filter on Microphone input
Phantom power selectable by internal jumper

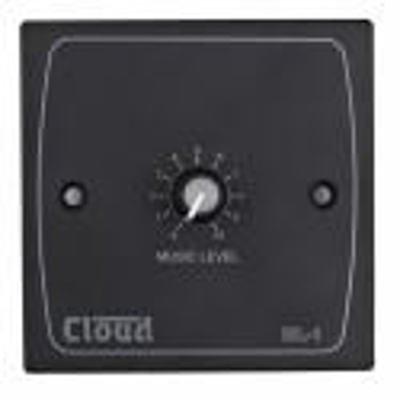

Music level and source selection via RSL-4 & RSL-6
Facility input (Zone 1 or Both) for active modules LM-2/BT-1
RS232 control interface
Line 4 priority
Mic over Music input priority
Separate EQ for music and mic signals
2 x Auxiliary balanced line outputs
1 x Utility / Loop output with independent line & mic controls with music content selection
Remote Music Mute configurable for NO or NC operation
Selectable speaker output impedance (4O/8O/70v/100v)
High-Impedance Power sharing, 240W available
Efficient, Universal Power Supply
Variable Speed Fan Cooling
