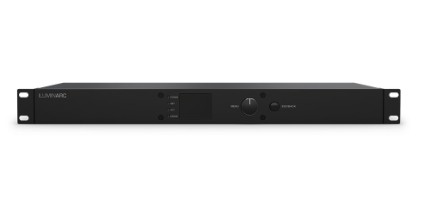

Chauvet Pro - LOGIC Drive 2x

The Logic Drive 2X is designed to feed power and control to remote fixtures using the POE latest standard IEEE 802.3 bt (power over Ethernet) and TCP/IP for control. It has 2 output ports and will support a maximum of 92.5 W/port. The Drive 2X includes one LOGIC Wall Con, which is a single gang wall controller that can recall up to 8 recorded scenes from the Drive 2X. Additional Wall Cons may be added to the system, up to 4 pcs on a single controller to have multiple control locations. The Drive 2X supports DMX, Art-Net, and sACN control protocols, and includes an integrated webserver to configure the date/time settings, which are used in the daily/calendar trigger.

2 POE (Power Over Ethernet) outputs, each supplying up to 110W

Control options include standard wall controllers, or DMX input via 5-pin XLR, Art-Net, or sACN

Occupancy sensor-enabled

Supports fixture hot-swapping and automatic fixture detection

Current and voltage monitoring

RDM compliant
