Neutrik Outdoor Series

Neutrik Top Cable Connectors


The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are IP65 and UL50E rated.

The TOP series is a heavy-duty XLR connector for outdoor applications. The connector is sealed when mated with a related cable or panel connector from the TOP series. It is available in 3 and 5 pin configurations, with gold-plated contacts.

They are easy to assemble, with only four parts and no screws. The contact block is hard plastic (polyamide), and is inserted from the rear of the shell. The female contacts have solder buckets, and incorporate a solder barrier to prevent solder running into the contact mating area. The female connector has a solid metal latch, sealed under UV resistant rubber. The Neutrik chuck design gives secure clamping to all cables 5.0mm - 8.0mm diameter. Glands with polyurethane strain-reliefs give high protection to the cable against bending stresses. Supplied unassembled, in individual plastic bags.

Neutrik NC3MX-TOP XLR Male Cable

Neutrik NC3MX-TOP XLR Male Cable


3 pin male XLR

41-552


Price: 9.15+VAT (10.98 Including VAT at 20%)


Neutrik NC3FX-TOP XLR Female Cable

Neutrik NC3FX-TOP XLR Female Cable


3 pin female XLR

41-551


Price: 9.15+VAT (10.98 Including VAT at 20%)


Neutrik NC5MX-TOP DMX Male Cable

Neutrik NC5MX-TOP DMX Male Cable


5 pin male DMX

41-556


Price: 13.85+VAT (16.62 Including VAT at 20%)


Neutrik NC5FX-TOP DMX Female Cable

Neutrik NC5FX-TOP DMX Female Cable


5 pin female DMX

41-555


Price: 13.85+VAT (16.62 Including VAT at 20%)


Neutrik TOP Panel Mount Connectors


The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant, ruggedized, sealed connectors are IP65 and UL50E rated.

The TOP series is a heavy-duty, locking, XLR connector for outdoor applications. The connector is sealed when mated with a related cable connector from the TOP series. It is available in 3 and 5 pin configurations, with gold-plated contacts.

These universal housing connectors, common to most Neutrik connector ranges, allows simpler metalworking and more flexibility of use. The Polyamide shell, with 24mm cutout diameter, can be mounted from the front. M3 stainless-steel, countersunk screws are recommended. Each mounting hole has an o-ring seal, which should be lubricated with silicone prior to use. Female connectors have a stainless-steel latch. To the rear of the connector, there are solder-bucket contacts, and a TPE gasket for sealing. An optional rubber plug is available to protect against ingress of dust and dirt when not in use.

Neutrik NC3MDX-TOP XLR Male Panel Mount

Neutrik NC3MDX-TOP XLR Male Panel Mount


3 pin panel mount male XLR

41-572

see below to order a cover


Price: 4.60+VAT (5.52 Including VAT at 20%)


Neutrik NC3FDX-TOP XLR Female Panel Mount

Neutrik NC3FDX-TOP XLR Female Panel Mount


3 pin panel mount female XLR

41-571

see below to order a cover


Price: 5.50+VAT (6.60 Including VAT at 20%)


Neutrik NC5MDX-TOP DMX Male Panel Mount

Neutrik NC5MDX-TOP DMX Male Panel Mount


5 pin panel mount male DMX

41-576

see below to order a cover


Price: 5.10+VAT (6.12 Including VAT at 20%)


Neutrik NC5DFX-TOP DMX Female Panel Mount

Neutrik NC5DFX-TOP DMX Female Panel Mount


5 pin panel mount female DMX

41-575

see below to order a cover


Price: 6.10+VAT (7.32 Including VAT at 20%)


Neutrik SCMDX-TOP Male Panel Mount Cover

Neutrik SCMDX-TOP Male Panel Mount Cover


Sealing cover for XLR true outdoor protection male connectors

40-754


Price: 0.65+VAT (0.78 Including VAT at 20%)

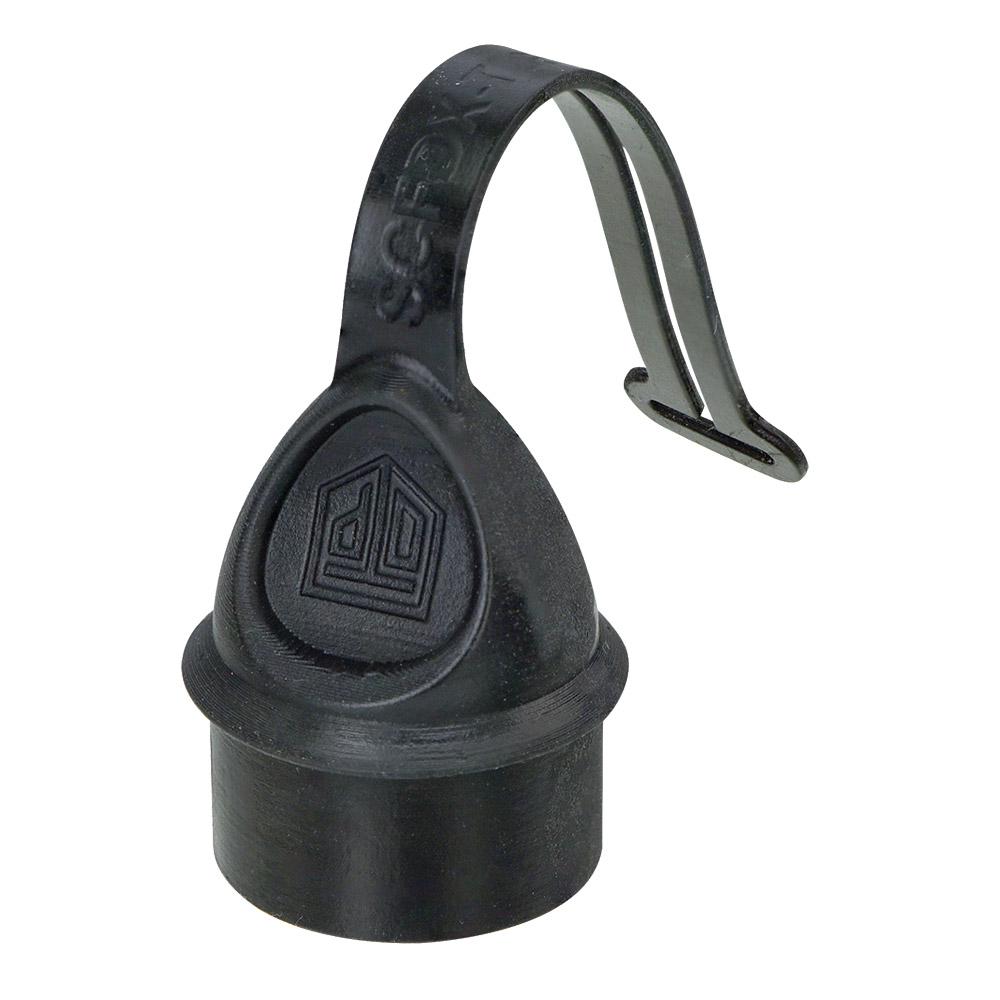

Neutrik SCFDX-TOP Female Panel Mount Cover

Neutrik SCFDX-TOP Female Panel Mount Cover


Sealing cover for XLR true outdoor protection female connectors

40-753


Price: 0.35+VAT (0.42 Including VAT at 20%)
