Pulse Stage Boxes

Pulse - PH-PSU - Phantom Power Supply - DP3253115

Pulse - PH-PSU - Phantom Power Supply - DP3253115


The PH-PSU is designed to be a simple to use, single channel +48V phantom power supply for condenser microphones, allowing you to use them with mixing consoles which don’t produce a phantom power supply.

• 1x Female XLR input

• 1x Male XLR output

• Frequency response: 10Hz – 25kHz

• Phantom power: 48V ±2VDC

• Residual output noise: -71dBV

• Power: 18VAC adaptor (included)

• Dimensions (WxHxD): 127x40x77mm

• Weight: 540g



Price: 16.00+VAT (19.20 Including VAT at 20%)


Pulse - PH-PSU DUAL - Dual Channel Phantom Power Supply - DP3253115

Pulse - PH-PSU DUAL - Dual Channel Phantom Power Supply - DP3253115


The PH-PSU DUAL is a dual channel phantom power supply with the option of using either a 12V DC adaptor

or 2x 9V batteries. The PH-PSU DUAL also has selectable 12V/48V phantom power, making this unit

both versatile and portable.

• 2x Female XLR inputs • 2x Male XLR outputs

• Phantom power: 12V/48V switchable

• Power: 2x 9V batteries (included) or an optional

12VDC adaptor (PW0305815)

• Dimensions (WxHxD):

143x45x93mm

• Weight: 485g


Price: 16.00+VAT (19.20 Including VAT at 20%)


Pulse - DIB-1P - Passive DI Box - DP3252715

Pulse - DIB-1P - Passive DI Box - DP3252715


A durable passive direct box which can be used to connect the outputs of musical instruments to the balanced XLR inputs of mixing consoles. Furthermore the DIB-1P will also allow you to link back through to the instruments own amplifier at the same time.

. 1x Unbalanced 6.35mm (1..") Jack input socket

. 1x Balanced XLR in/output socket

. 1x Unbalanced 6.35mm (1..")

Jack Link output socket

. Attenuation switch: 0dB/-

20dB/-40dB

. Ground lift switch



Price: 14.50+VAT (17.40 Including VAT at 20%)

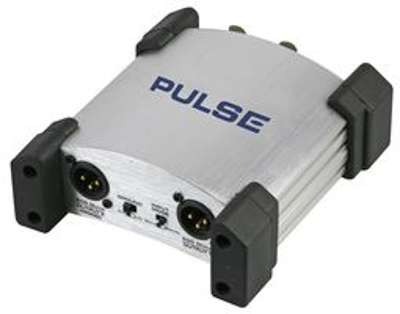

Pulse - DIB-2P - Dual Channel Passive DI Box - DP3252815

Pulse - DIB-2P - Dual Channel Passive DI Box - DP3252815


The DIB-2P is a durable passive direct box which can be

used to connect the outputs of musical instruments to

the balanced XLR inputs of mixing consoles. The mono

mode switch lets you split the signal from input 1 across

both outputs.

• 2x Female XLR/Jack combo inputs

• 2x Male XLR outputs

• Attenuation switch: 0dB/-

20dB/-40dB

• Ground lift switch

• Stereo/mono mode switch


Price: 24.50+VAT (29.40 Including VAT at 20%)


Pulse - DIB-1A - Active DI Box - DP3252815

Pulse - DIB-1A - Active DI Box - DP3252815


The DIB-1A is an active DI box which allows you to convert 50kĦ instrument signals to 600Ħ signals for use with mixing consoles, there is also a linked output allowing you to connect directly with the instruments amplifier.

. 1x 6.35mm (1..") Jack input . 1x Female XLR input

. 1x 6.35mm (1..") Jack Link output

. 1x Male XLR output

. Attenuation switch: 0dB/-20dB/-40dB

. Ground lift switch . Power switch

. Battery compartment

. Frequency response: 10Hz . 30kHz

. Input impedance: 470kĦ

. Output impedance: 600Ħ . Output level: 6dBu (max)

. Dynamic range: >100dB . THD: 0.5%

. Power supply: 1x 9V battery

(included)

. Dimensions (WxHxD):

130x60x150mm

. Weight: 553g


Price: 24.50+VAT (29.40 Including VAT at 20%)


Pulse - MPRE - Microphone Pre Amplifier - DP3252915

Pulse - MPRE - Microphone Pre Amplifier - DP3252915


The MPRE is designed to be small, simple and cost effective microphone pre amplifier suitable for a variety of applications.

. Inputs: Female XLR (bal.), 6.35mm (1..") Jack socket (unbal.)

. Outputs: Male XLR (bal.), 6.35mm (1..") Jack socket (unbal.)

. Gain control . Power and clip LED indicators

. Phantom power: +36V

. Input impedance: 10kĦ

. Input level: +4dBV XLR (max), +10dBV Jack (max)

. Gain: 50dB XLR (max), 44dB Jack (max)

. THD: <0.01%

. Power: 12VDC adaptor (included)

. Dimensions (WxHxD):

113x40x73mm

. Weight: 349g


Price: 23.50+VAT (28.20 Including VAT at 20%)


Pulse - DI-50 - Active DI Box - DP3208815

Pulse - DI-50 - Active DI Box - DP3208815


Designed for use on stage or in the studio the Pulse DI-50 has been designed for low noise signal conversion.

. On/Off switch

. -20dB pad for signal attenuation

. 6.35mm (1..") & unbalanced XLR inputfs with parallel

6.35mm (1..") output unbalanced

. Balanced XLR output

. Rugged metal chassis complete

with rubber corners

. Power: 9V PP3 or 18-48V

phantom power operation


Price: 23.50+VAT (28.20 Including VAT at 20%)
