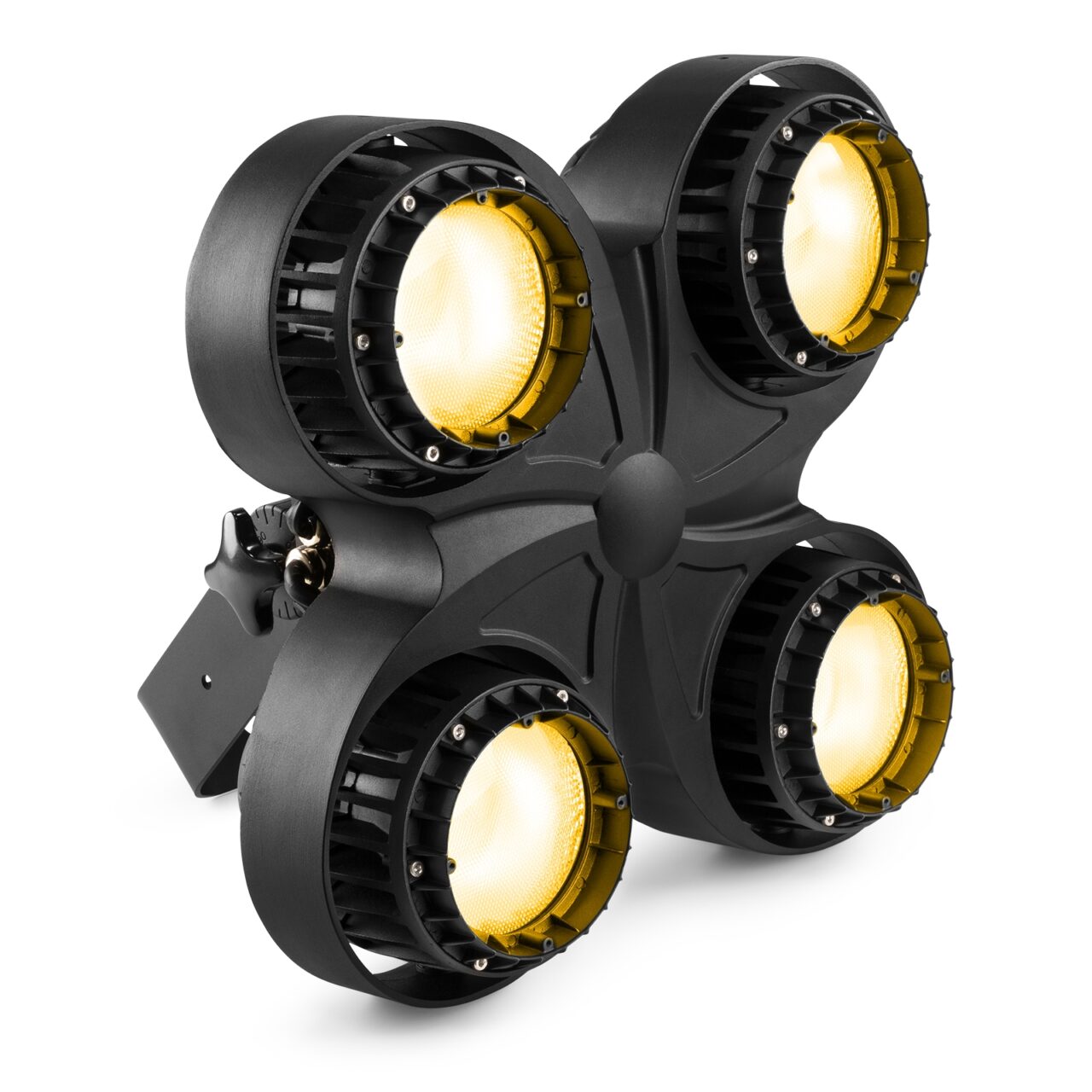

SB420IP Stage Blinder IP65 WW/AMBER p/n 150.455
The IP65 rated SB420IP Stage Blinder is a powerful LED lighting fixture with a rugged aluminium design featuring Chip-on-Board (COB) LEDs that combines two effects in its housing. In addition to a standard stage blinder, this fixture can also be used as an authentic blinder effect. (Tungsten mode) The SB420IP matches the blinding light output of a conventional Audience Blinder and can be controlled in standalone mode or directly via DMX. The LEDs feature up to a 60.000 hour life expectancy.
4x 85W Warm White COB LEDs
4x 20W Amber COB LEDs
Tungsten mode
Rugged die-cast aluminium exterior
4-button control panel and LED menu display
DMX/RDM and Stand-alone mode
1, 3, 5 or 9 DMX channels
Master/slave function
Auto mode with adjustable speed
IP65 rated DMX and Powerconnector TR in/out
Specifications:
Product colour - Black
Light source - 2-in-1 LED
LED colours - Amber, Warm White
Quantity of LEDs - 4
Beam angle - 48
Field angle - 74
Illuminance - 17.300 lx @ 1m
Flash rate per second - 1 - 25Hz
DMX channels - 1, 3, 5, 9
DMX connection - 3-pin XLR
Modes - Automatic programs, DMX, Manual, Master/Slave
IP rating - IP65
Cooling - Convection
Display - LED
Power plug - Power-connector TR
Power consumption 3.28 - 1.50A
Power supply - 100-240VAC 50/60Hz
Dimensions (L x W x H) - 390 x 390 x 245 mm (with bracket 390 x 390 x 390 mm)
Weight - 12.7000
Included accessories - Mounting bracket, Power cable
