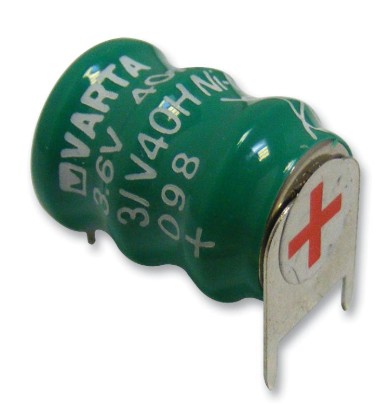

3.6V, Back-up Battery
Minimum capacity 140mAh
3-Pin PCB Mount
Nickel Metal Hydride
The older desk products will have had NiCad batteries and can be identified as having a blue cover. These are the direct replacements, green cover.
Eclipse
Orion
Lightmaster XL and XLS
Sirius 24 and 48 (48 has two of these)
ID series dimmer
Linebacker
Illusion 120/240
Demux 48 and LTC Demux card
*Frog and Fat Frog - See note below
**Sirius 250 and 500 - See note below
*Note on Frog and Fat Frogs.
Early version (pre November 2001) of these desks had a different style of mother board that has the Varta battery fitted.
Frog desks are difficult to identify without opening even using the serial number as there was a cross over period when we changed type of PCB. A quick guide is anything with a serial number starting 0073001 01XXXXXX will be a Varta battery. Desk serial number 073001 02XXXXXX will be a CR2032
Fat Frogs can be identified by looking at the DMX sockets, if the outer surround is silver then it will be a Varta battery. If the outer surround is black it will be a CR2032 coin cell battery.
All other Frog series consoles use the CR2032 coin cell battery
**Note on Sirius 250 and 500
There are two PCB that have a battery fitted in these desks.
The front panel interface board (PCIF card) which had a Vatra battery fitted and a standard PC mother board.
The PC mother boards came with a variety of different types of batteries or re-chargeable cells.
The desk would have to be opened to confirm what type is fitted.
